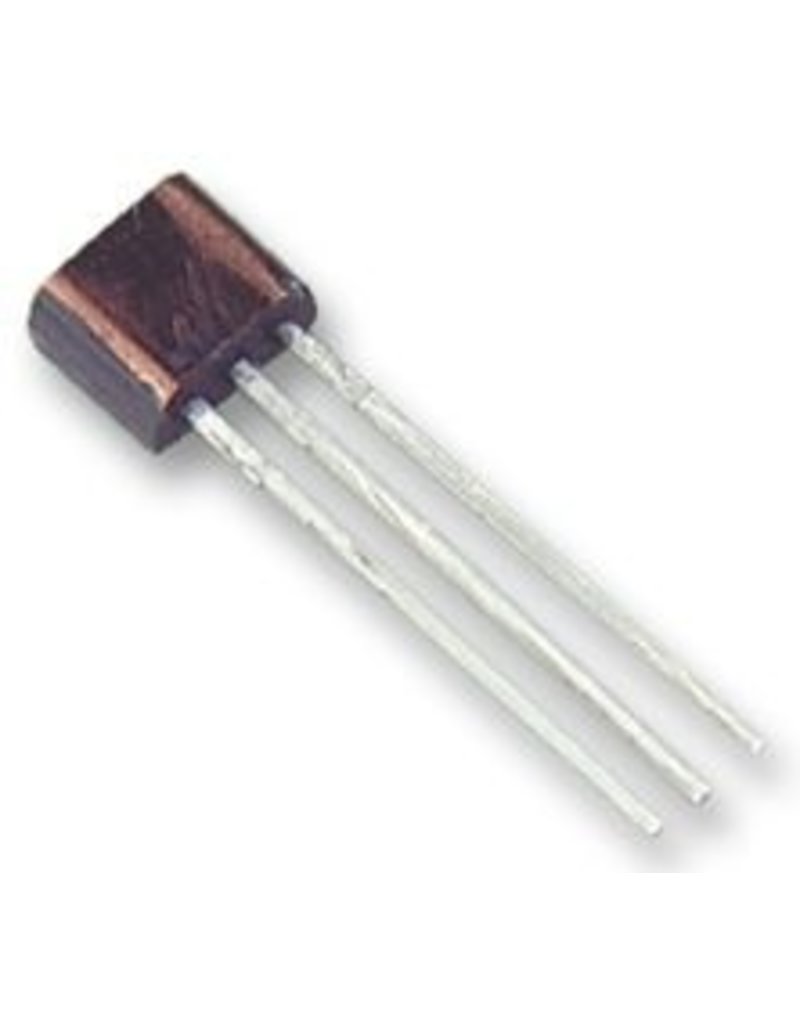

ZTX753 PNP 100V 2A

Availability:

In stock (20)

• TRANSISTOR, PNP, E-LINE
• Transistor Polarity:PNP
• Collector-to-Emitter Breakdown Voltage:100V
• Typ Gain Bandwidth ft:140MHz
• Power Dissipation Pd:1W
• DC Collector Current:-2A
• DC Current Gain hFE:100
• Transistor Case Style:E-Line
• No. of Pins:3
• Case Style:E-Line
• Current Ic @ Vce Sat:2000mA
• Current Ic hFE:500mA
• Max Current Ic:2A
• Max Current Ic Continuous a:2A
• Max Power Dissipation Ptot:1W
• Max Voltage Vce Sat:0.5V
• Min Gain Bandwidth ft:100MHz
• Min Hfe:100
• No. of Transistors:1
• Pin Configuration:e
• Power Dissipation:1W
• Termination Type:Through Hole
• Transistor Type:Bipolar
• Voltage Vcbo:120V
