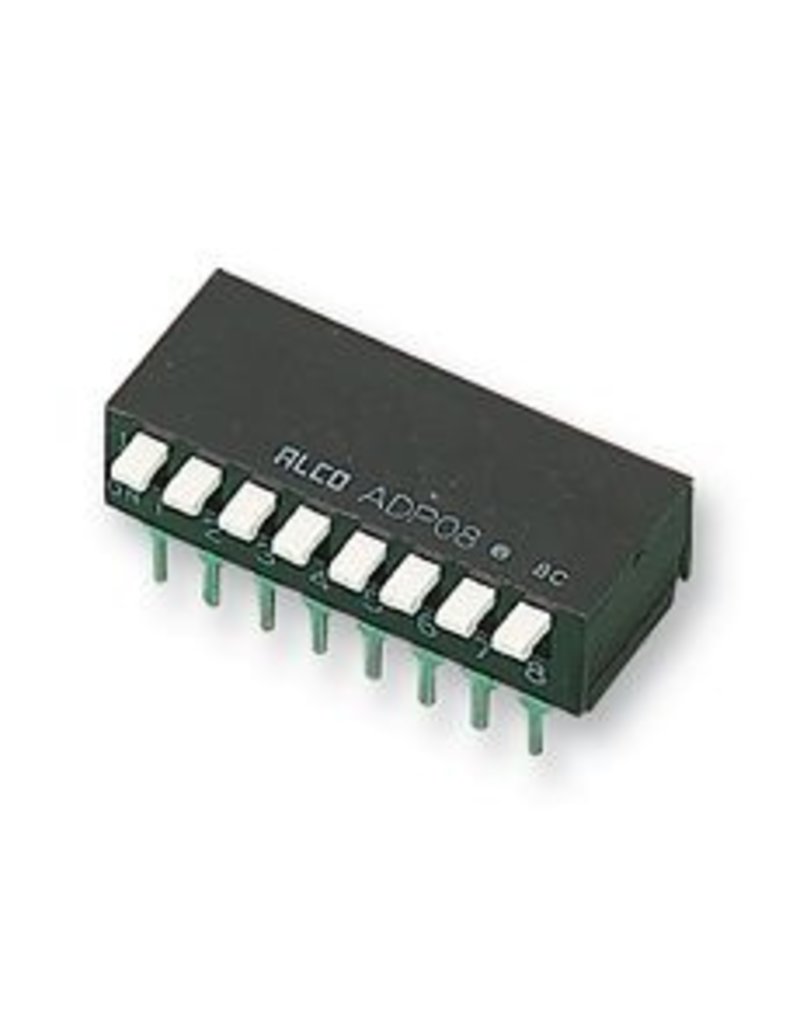

DIL Switch Piano 8-way Tyco

€5,60
Availability: In stock (9)



Can be used in Quad 44 modules
  • SWITCH, DIL, PIANO, 8WAY
  • Switch Type:DIL
  • Contact Configuration:SPST
  • No. of Positions:8
  • Actuator Type:Piano Key
  • Max Contact Current DC:100mA
  • Contact Current Rating:20mA
  • Contact Plating:gold over copper alloy
  • Contact Resistance:50mohm
  • Dielectric Strength, VDC:500V
  • External Length / Height:5.25mm
  • External Width:7.5mm
  • Flammability Rating:UL94V-4
  • Insulation Resistance:1000Mohm
  • Lead Spacing:2.54mm
  • Length:22.3mm
  • Max Operating Temperature:85°C
  • Min Temperature Operating:-45°C
  • No. of Mechanical Operations:1000
  • No. of Ways:8
  • Pin Configuration:DIL
  • Row Pitch:7.62mm
  • Series:AD
  • Terminal Type:THT
