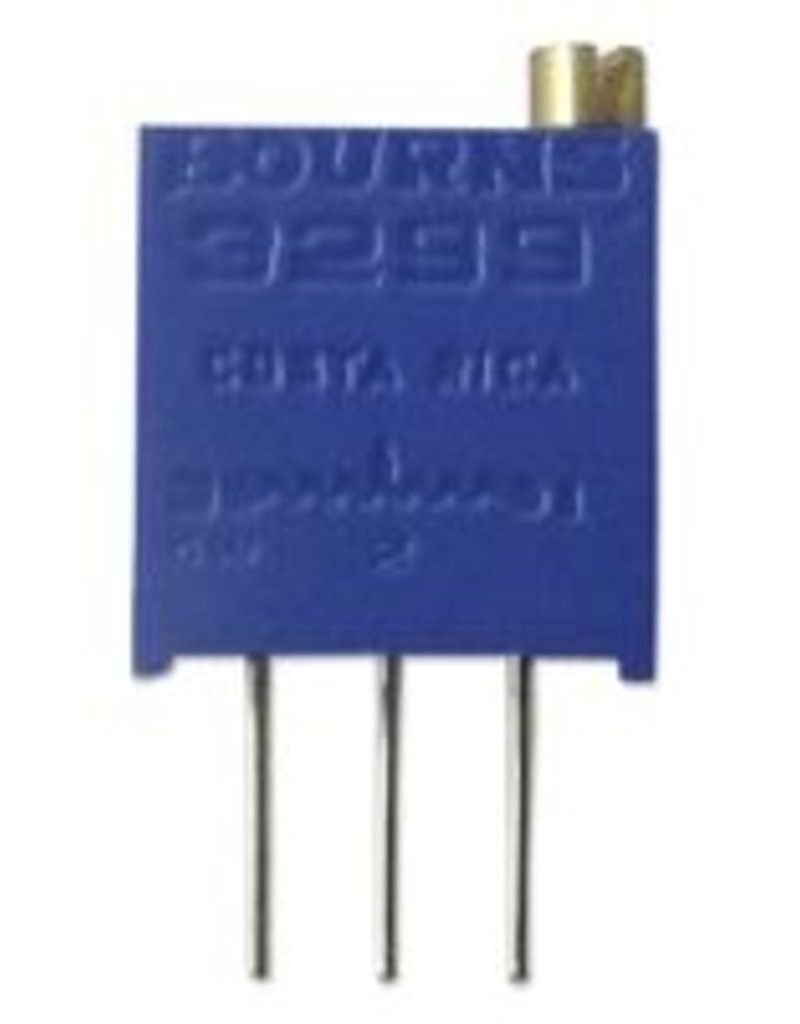

Bourns 5K 25 Turn

€4,20
Availability: In stock (58)
TRIMMER, 25 TURN 5K
  • Track Resistance: 5kohm
  • No. of Turns: 25
  • Resistance Tolerance: ± 10%
  • Temperature Coefficient: ± 100ppm/°C
  • Power Rating: 500mW
  • Potentiometer Mounting: Through Hole
  • SVHC: No SVHC (19-Dec-2012)
  • Adjustment Type: Top
  • Contact Resistance Variation +: 1%
  • End Resistance: 2ohm
  • External Length / Height: 10.3mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.51mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Package / Case: PCB Mount
  • Proof Voltage: 900V
  • Resistance: 5kohm
  • Resistor Element Material: Cermet
  • Series: 3299W
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Terminal Type: PCB Terminals
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Track Taper: Linear
  • Voltage Rating: 300V
  • Voltage Rating V DC: 300V
