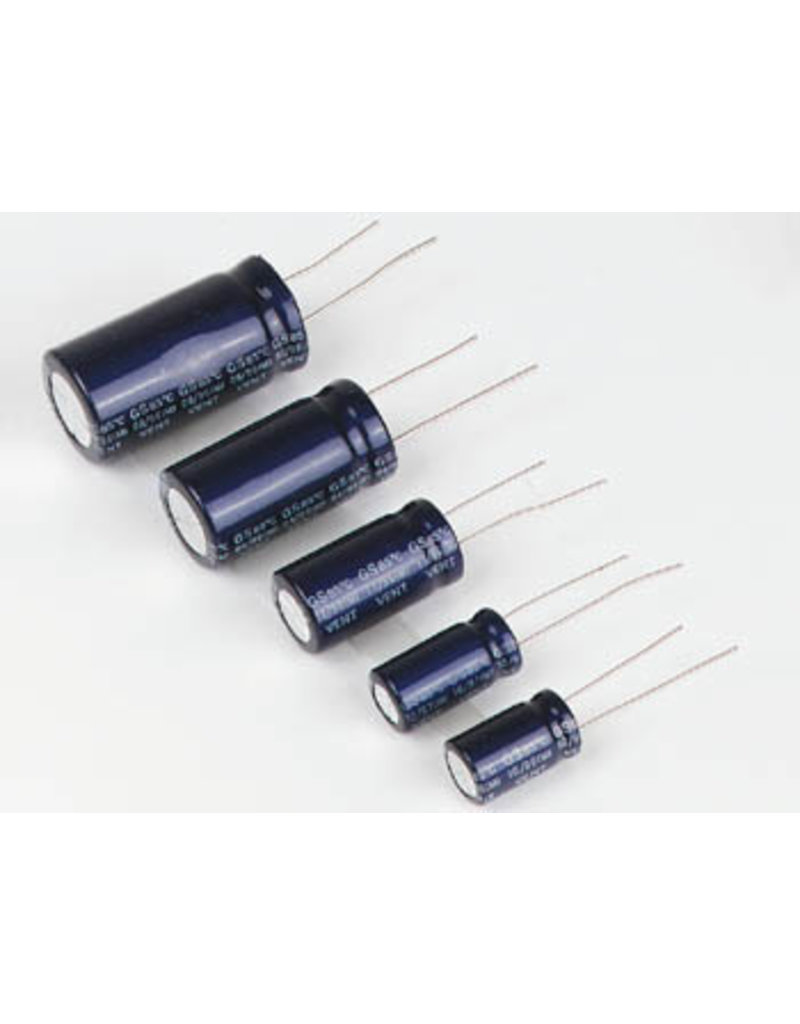

470µF 63V M-series Radial Panasonic

€1,20
Availability: In stock (20)
  • CAPACITOR, 470UF, 63V
  • Capacitor Application:General Purpose
  • Capacitor Dielectric Type:Aluminium Electrolytic
  • Capacitance:470µF
  • Capacitance Tolerance:± 20%
  • Voltage Rating:63VDC
  • Series:M
  • Life Time @ Temperature:2000 hours @ 85°C
  • Height:20mm
  • Capacitor Case Style:Radial
  • No. of Pins:2
  • Capacitor Mounting:Through Hole
  • Lead Spacing:5mm
  • Operating Temperature Range:-40°C to +85°C
  • SVHC:No SVHC (18-Jun-2010)
  • AC Ripple Current:750mA
  • Body Diameter:12.5mm
  • External Length / Height:20mm
  • Lead Diameter:0.6mm
  • Leakage Current Max:296.1µA
  • Operating Lifetime:2000h
  • Operating Temperature Max:85°C
  • Outer Diameter:12.5mm
  • Package / Case:Radial
  • Ripple Current Frequency:120Hz
  • Ripple Current Temperature:85°C
  • Temperature Operating Min:-40°C
  • Terminal Type:Wire Ended
  • Tolerance +:20%
  • Tolerance -:20%
  • Voltage DC:63V
