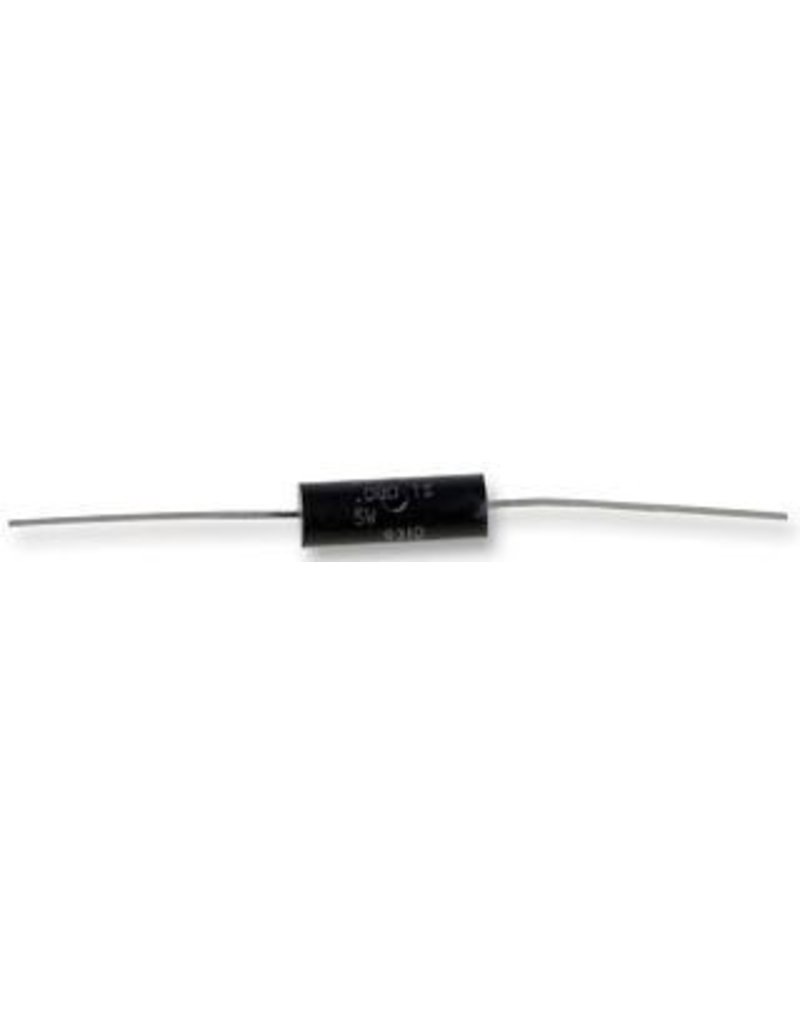

0R3 5W Precision Dale

Availability:

In stock (34)

• RESISTOR, PRECISION, 0.3 OHM 1%
• Power Rating:5W
• Resistance:0.3ohm
• Resistance Tolerance:± 1%
• Series:LVR05
• Operating Temperature Range:-65°C to +275°C
• Resistor Element Type:Wirewound Moulded
• Voltage Rating:1.23V
• Temperature Coefficient:± 1000ppm/°C
• Case Style:Axial
• Body Diameter:8.38mm
• Temperature Coeff. -:1000ppm/°C
• Tempperature Coeff. +:1000ppm/°C
• Tolerance, +:1%
• Tolerance, -:1%
• Body Length:23.5mm
• Insulation Resistance:10000Mohm
• Lead Diameter:1.02mm
• Max Operating Temperature:275°C
• Min Temperature Operating:-65°C
• Dielectric Strength, VAC:1000V
• Resistor Case Style:Axial
• Weight:5g
